ZIP System® Insulated R‑Sheathing

ZIP System R-sheathing is the simple all-in-one structural panel with built-in exterior insulation. Featuring integrated moisture, air and thermal protection, ZIP System R-sheathing completely reimagines traditional wall assemblies by streamlining exterior water, air and thermal management.

  • R-3 Insulated Panel, 1" 4' × 8'

  • R-3 Insulated Panel, 1" 4' × 9'

  • R-3 Insulated Panel, 1" 4' × 10'

  • R-6 Insulated Panel, 1-1/2" 4' × 8'

  • R-6 Insulated Panel, 1-1/2" 4' × 9'

  • R-6 Insulated Panel, 1-1/2" 4' × 10'

  • R-9 Insulated Panel, 2" 4' × 8'

  • R-9 Insulated Panel, 2" 4' × 9'

  • R-9 Insulated Panel, 2" 4' × 10'

  • R-12 Insulated Panel, 2-1/2" 4' × 8'

  • R-12 Insulated Panel, 2-1/2" 4' × 9'

  • R-12 Insulated Panel, 2-1/2" 4' × 10'

  • View All

01 Products

R-3 Insulated Panel, 1" 4' × 8'

Panel Count 32
R-Value Scale 3.6

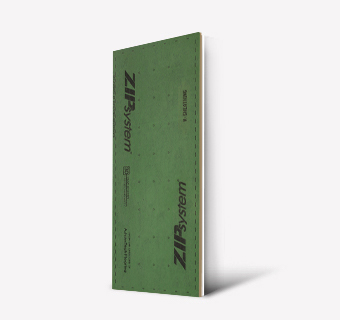

R-3 Insulated Panel, 1" 4' × 9'

Panel Count 32
R-Value Scale 3.6

R-3 Insulated Panel, 1" 4' × 10'

Panel Count 32
R-Value Scale 3.6

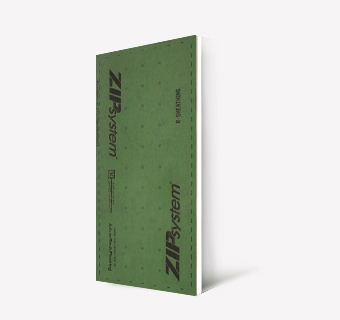

R-6 Insulated Panel, 1-1/2" 4' × 8'

Panel Count 31
R-Value Scale 6.6

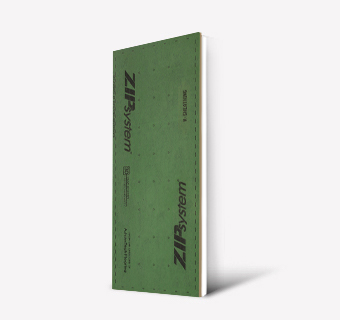

R-6 Insulated Panel, 1-1/2" 4' × 9'

Panel Count 31
R-Value Scale 6.6

R-6 Insulated Panel, 1-1/2" 4' × 10'

Panel Count 31
R-Value Scale 6.6

R-9 Insulated Panel, 2" 4' × 8'

Panel Count 23
R-Value Scale 9.6

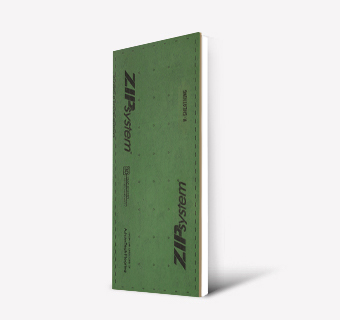

R-9 Insulated Panel, 2" 4' × 9'

Panel Count 23
R-Value Scale 9.6

R-9 Insulated Panel, 2" 4' × 10'

Panel Count 23
R-Value Scale 9.6

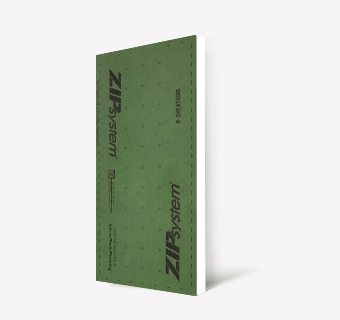

R-12 Insulated Panel, 2-1/2" 4' × 8'

Panel Count 18
R-Value Scale 12.6

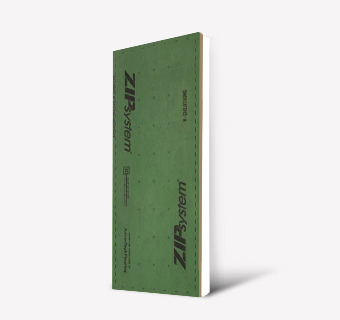

R-12 Insulated Panel, 2-1/2" 4' × 9'

Panel Count 18
R-Value Scale 12.6

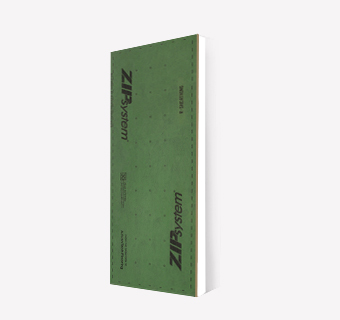

R-12 Insulated Panel, 2-1/2" 4' × 10'

Panel Count 18
R-Value Scale 12.6

Panel Type[1]

Total ThicknessPanel Size

Panel Count

R-Value

Code Evaluation Report

Air Barrier
R-3 Insulated Panel1"4' × 8'

4' × 9'

4' × 10'

323.6ESR 3373

ER 482

ASTM E 2178 <0.02 L/s●m2) @ 75 Pa


ASTM E 2357 <0.2 L/s●m2) @ 75 Pa
R-6 Insulated Panel1-1/2"316.6
R-9 Insulated Panel2"239.6
R-12 Insulated Panel2-1/2"1812.6

02 Why It Works

The front fights air and moisture. The back fights heat and cold. Together, they knock out the elements.

  1. Built-In Exterior Insulation

    Polyisocyanurate rigid exterior insulation on the back of the structural panel reduces heat transfer to help keep homes consistently comfortable year-round.

  2. Integrated Water-Resistive Barrier

    A resin-impregnated, water-resistive barrier manufactured onto the structural panel eliminates the need for housewrap, sheds water to the exterior and is backed by a 180-day Exposure Guarantee[2].

  3. Continuous Air Barrier

    Sealed seams with advanced acrylic ZIP System tape and ZIP System liquid flash form a continuous air and water barrier that manages water and reduces air leaks for an energy-efficient exterior.

  4. Structural Durability

    The integrated structural sheathing system meets wall bracing requirements and contributes to shear wall assemblies. Plus, the engineered wood panel provides a nailable, easy-to-flash base.

03 Code Requirements

Take the guesswork out of code.

Shear Values

Find fastening requirements to meet wall bracing and seismic- and wind-controlled wind values.

Climate Zone Requirements

Choose the panel that’s right for your region with our climate zone requirements guide.

Code Reports

Download code compliance documentation.

UES: High Seismic Design View
ICC-ES: Wind and Low Seismic Design View

05 Product Reviews

See what other builders are saying.

With ZIP System R-Sheathing, we are able to essentially terminate ‘thermal bridging’ which is the transfer of heat/cold thru areas of least resistance like common wood on wood framing connections. Hummingbirdhill Homes
