ZIP System® Wall Sheathing
A revolutionary new approach to building enclosures, ZIP System® sheathing and tape streamlines the weatherization process with an integrated air and water-resistive barrier that delivers moisture and air protection in one easy-to-install system.
01 Products
7/16" Long Length Wall Sheathing, 4' × 10'
Panel Count | 70 |
PS-2 Span Rating | 24/16 Structural 1 |
7/16" Long Length Wall Sheathing, 4' × 10' 1-1/18"
Panel Count | 60 |
PS-2 Span Rating | 24/16 Structural 1 |
Performance Category | Panel Size | Panel Count | PS-2 Span Rating | Code Evaluation Report | Vapor Transmission of WRB Layer | Air Barrier Assembly |
---|---|---|---|---|---|---|
7/16" Panel | 4' × 8' | 80 | 24/16 Structural 1 | ESR 1473 ESR 1474 | 12 Perms ASTM E 96 Procedure B | ASTM E 2357 <0.037 L/s●m2) @ 75 Pa for Infiltration ASTM E 2357 <0.012 L/s●m2) @ 75 Pa for Exfiltration |
1/2" Panel | 4' × 8' | 70 | 32/16 Structural 1 | |||
5/8" Panel | 4' × 8' | 55 | 40/20 Structural 1 |
02 Why It Works
We introduced the integrated sheathing category. Here’s how building enclosures have evolved.
-
Structural Durability
ZIP System® panels are available with a Structural 1 rating, so you can get shear strength to meet seismic and high-wind-zone requirements.
-
Integrated Water-Resistive Barrier
By keeping bulk water out but allowing water vapor to pass through, ZIP System® sheathing achieves a delicate balance of water protection and drying potential.
-
Continuous Air Barrier
ZIP System sheathing and tape forms a tight barrier against unwanted air leakage, for a durable building envelope that helps promote energy efficiency and increase interior comfort.
-
Speed & Ease of Installation
Quick and simple two-step installation eliminates the need for housewrap, helping to save money on labor costs and improve project cycle times.
-
Quicker Rough Dry-In
Simply install the panels and tape the seams to achieve a quicker rough dry-in, allowing mechanicals and other trades to start sooner.
-
30-Year Limited Warranty
The ZIP System product line is backed by a 30-year limited warranty and 180-day Exposure Guarantee[1].
-
Award-Winning Quality
ZIP System wall sheathing and tape has been rated #1 in quality every year since 2015 in BUILDER magazine's Annual Brand Use Studies[2].
ZIP System® building enclosures are designed to streamline design and construction.

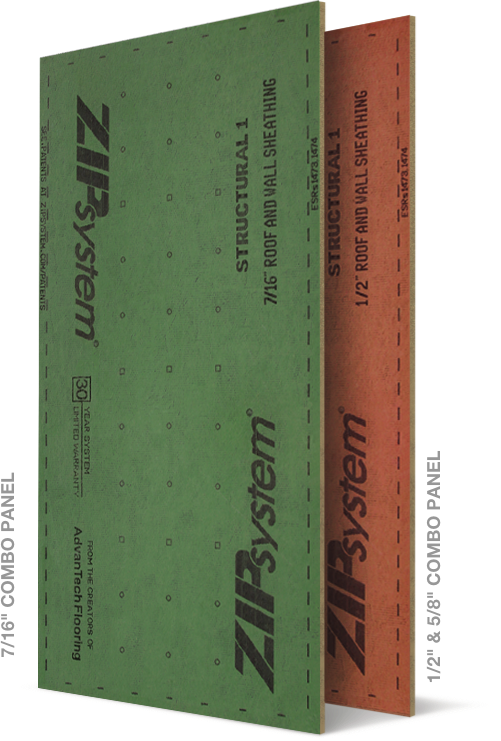

With integrated structural, water and air management layers, ZIP System products offer interchangeable options for optimal roof and wall performance. Three panel thicknesses with various dimensional options let you choose the right panel for each design and application. All sizes are engineered to provide optimal roof and wall performance.
SAMPLE COMBINATIONS
03 How to Install
Installation Videos
Watch simple step-by-step instructions and proper techniques to learn how to apply ZIP System wall sheathing and tape.
04 Product Reviews
See what other builders are saying.

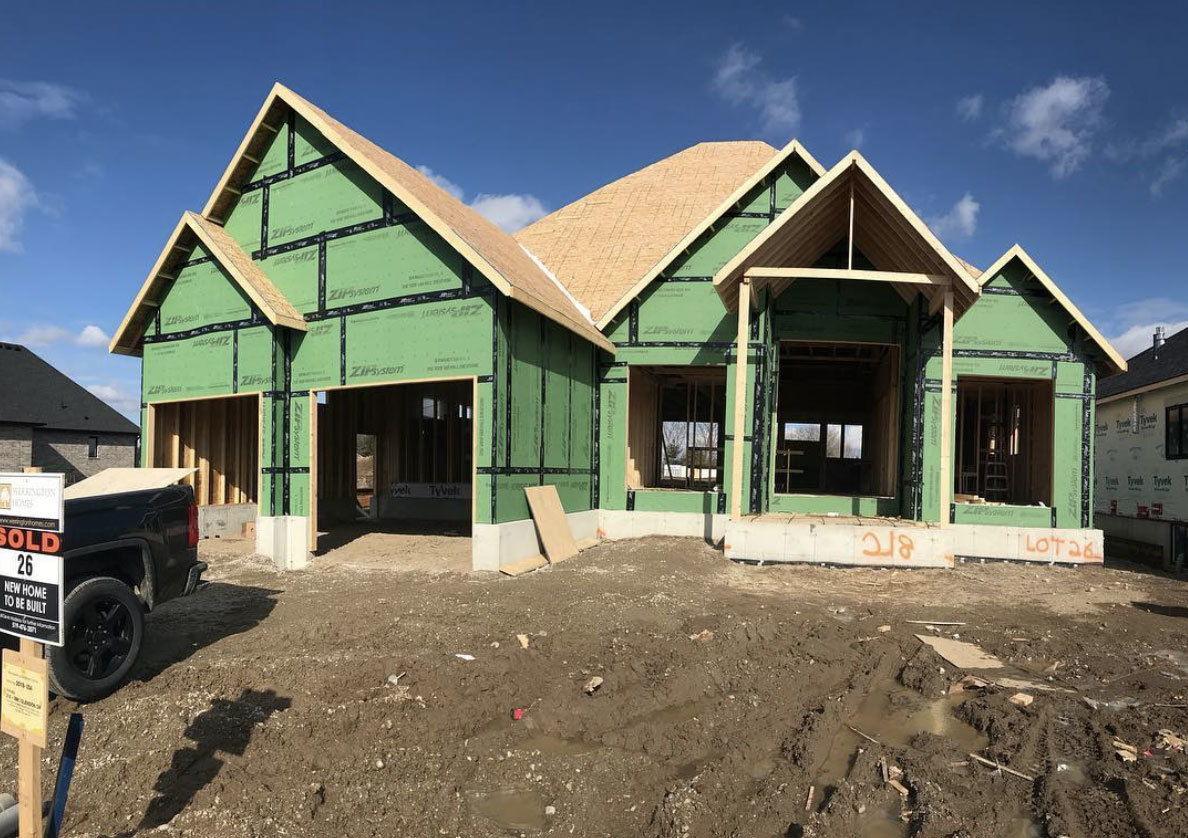

Still standing after big storm seconds after setting. Tucker Wright@trwright90
